Kelly KVD programmable motor controllers provide efficient, smooth and quiet controls for electric motorcycle motor control. It uses high power MOSFET’s and, PWM to achieve efficiencies of up to 99% in most cases. A powerful microprocessor brings in comprehensive and precise control to the controllers. It also allows users to adjust parameters, conduct tests, and obtain diagnostic information quickly and easily. Customers can program the KVD controller on PC software and/or via Android App. Customers may add USB cable for programming Via PC or Bluetooth module if they want to use Android Tablet. (not tuning generally required from E&C controllers for baseline operation)

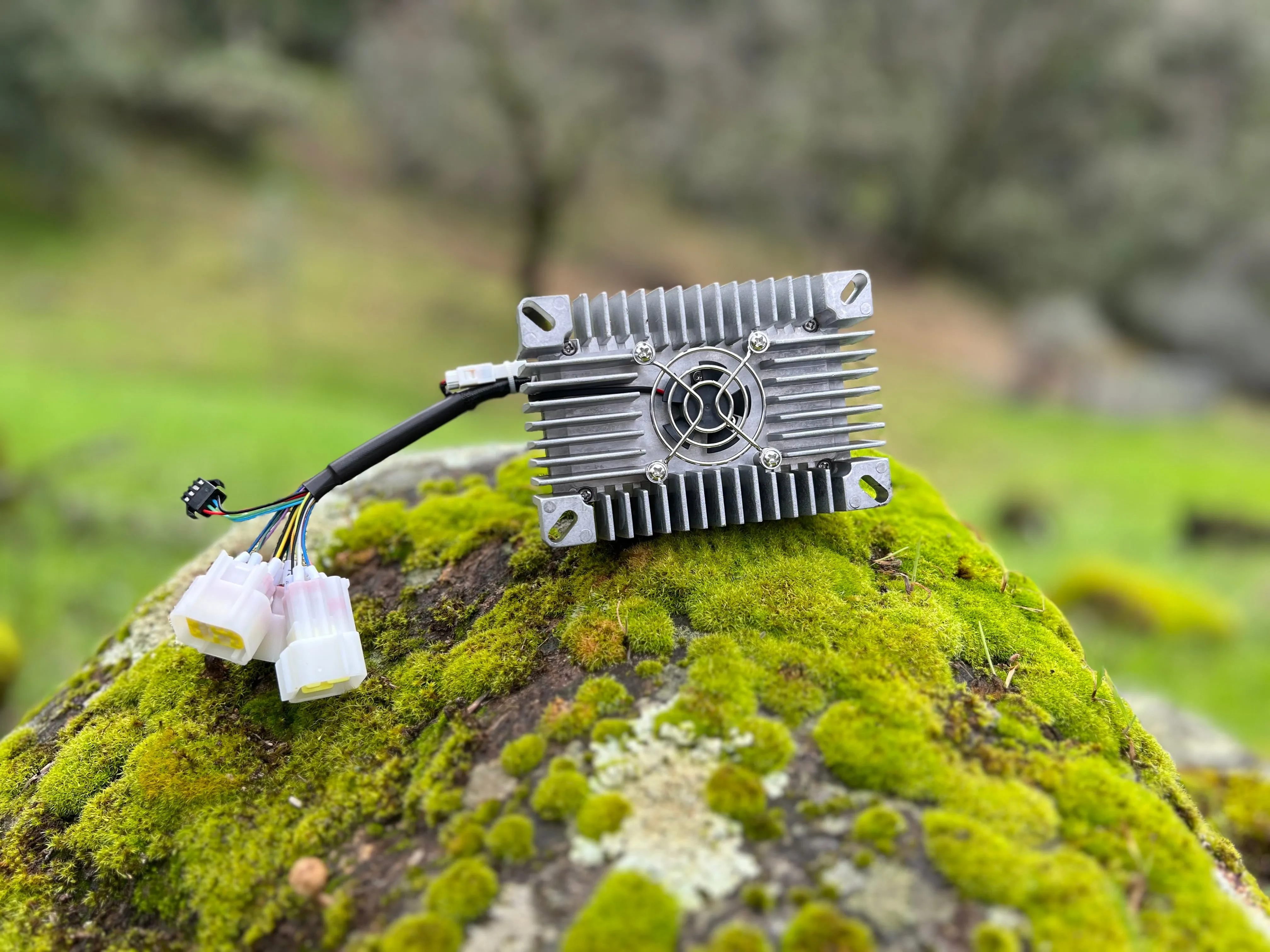

E&C KVD features an improved HEATSINK Design & enclosure over standard KVD , KBL/KLS controllers which results in improved waterproofing and peak currents.
- Motor Current Limit, 30 seconds: 200A
- Motor Current Limit, continuous: 75A
ELECTRO & COMPANY SERVICES
ULTIMATE PRE TUNE -INTENDED FOR MY1020 or MY1020 Motors.
ULTIMATE PLUG AND PLAY - COMES WITH EVERYTHING NEEDED TO PAIR YOUR OWN MY1020 BRUSHLESS MOTOR AND A RAZOR DIRT BIKE TOGETHER. LITHIUM ION BATTERIES 48-76v ARE REQUIRED. Actual voltage range 40v - 90v
Features
- Intelligence with powerful microprocessor.
- Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency.
- Electronic reversing.
- Voltage monitoring on 3 motor phases, bus, and power supply.
- Voltage monitoring on voltage source 12V and 5V.
- Current sense on all 3 motor phases.
- Current control loop.
- Hardware over current protection.
- Hardware over voltage protection.
- Configurable limit for motor current and battery current.
- Low EMC.
- Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
- Rugged aluminum housing for maximum heat dissipation and harsh environment.
- Rugged high current terminals, and rugged aviation connectors for small signal.
- Thermal protection: current cut back, warning and shutdown on high temperature.
- Controller can do Auto Identify for different degrees of hall sensors.
- Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
- Current multiplication: Take less current from battery, output more current to motor.
- Easy installation: 3-wire potentiometer will work.
- Standard PC/Laptop computer to do programming. There is one more choice for customers to program KVD controller. Standard Tablet with Android OS to do programming. Need a Z-TEK USB TO RS232 cable for connecting the controller to App program in Tablet.
- User program provided. Easy to use. No cost to customers.
- Support motors with any number of poles.
- Up to 40,000 electric RPM standard. (Electric RPM = mechanical RPM * motor pole pairs; Motor pole pairs=Motor poles/2).
- KVD-N: Dust and water protected under sealed condition,IP66
Specifications
- Frequency of Operation: 16.6kHz.
- Standby Battery Current: < 0.5mA.
- 5V or 12V Sensor Supply Current: 40mA.
- Controller supply voltage range: PWR, 40V to 72V for controllers rated equal or lower than 72V. KVD24V model: PWR, 20V to 30V. So All KVD-N controllers are non isolated type.
- Supply Current, PWR, 30mA Typical.
- Configurable battery voltage range, B . Max operating range: 30V to 1.25*Nominal Voltage.
- Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).
- Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.
- Full Power Operating Temperature Range: 0℃ to 70℃(MOSFET temperature).
- Operating Temperature Range: -40℃to 100℃ (MOSFET temperature).
- Max Battery Current :Configurable.
NOTE: USB / RS232 / BLUETOOTH ARE NOT INCLUDED. All Controllers will attempt to auto identify to any motor on their first key on and will work without the need for additional programming if wired properly.
